PROTILT Industrial Hoppers are engineered for heavy-duty performance, safety, and durability. With models including Self-Dumping & Bump Release, Quick Attach, Flying Job Box, and Low-Profile, every ProTilt hopper is built from US steel, powder-coated construction for reliable material handling on the job site.
PROTILT Industrial Hoppers are engineered for heavy-duty performance, safety, and durability. With models including Self-Dumping & Bump Release, Quick Attach, Flying Job Box, and Low-Profile, every ProTilt hopper is built from US steel, powder-coated construction for reliable material handling on the job site.

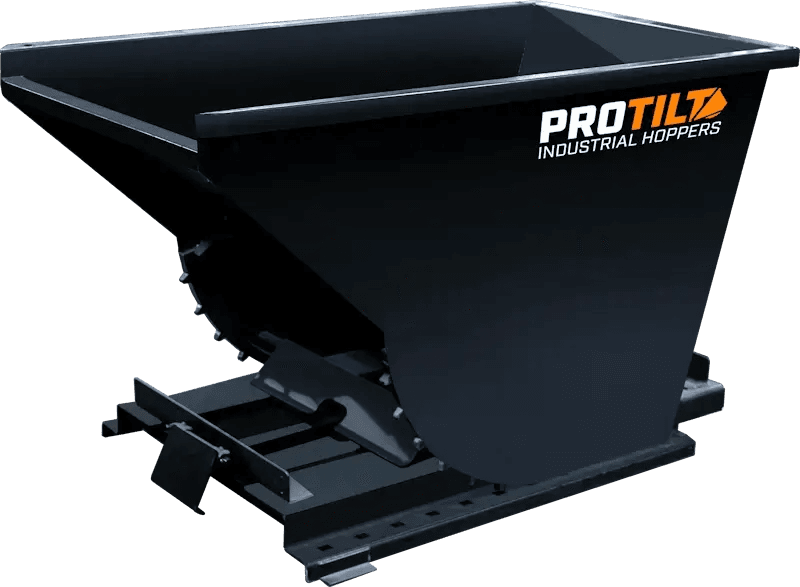

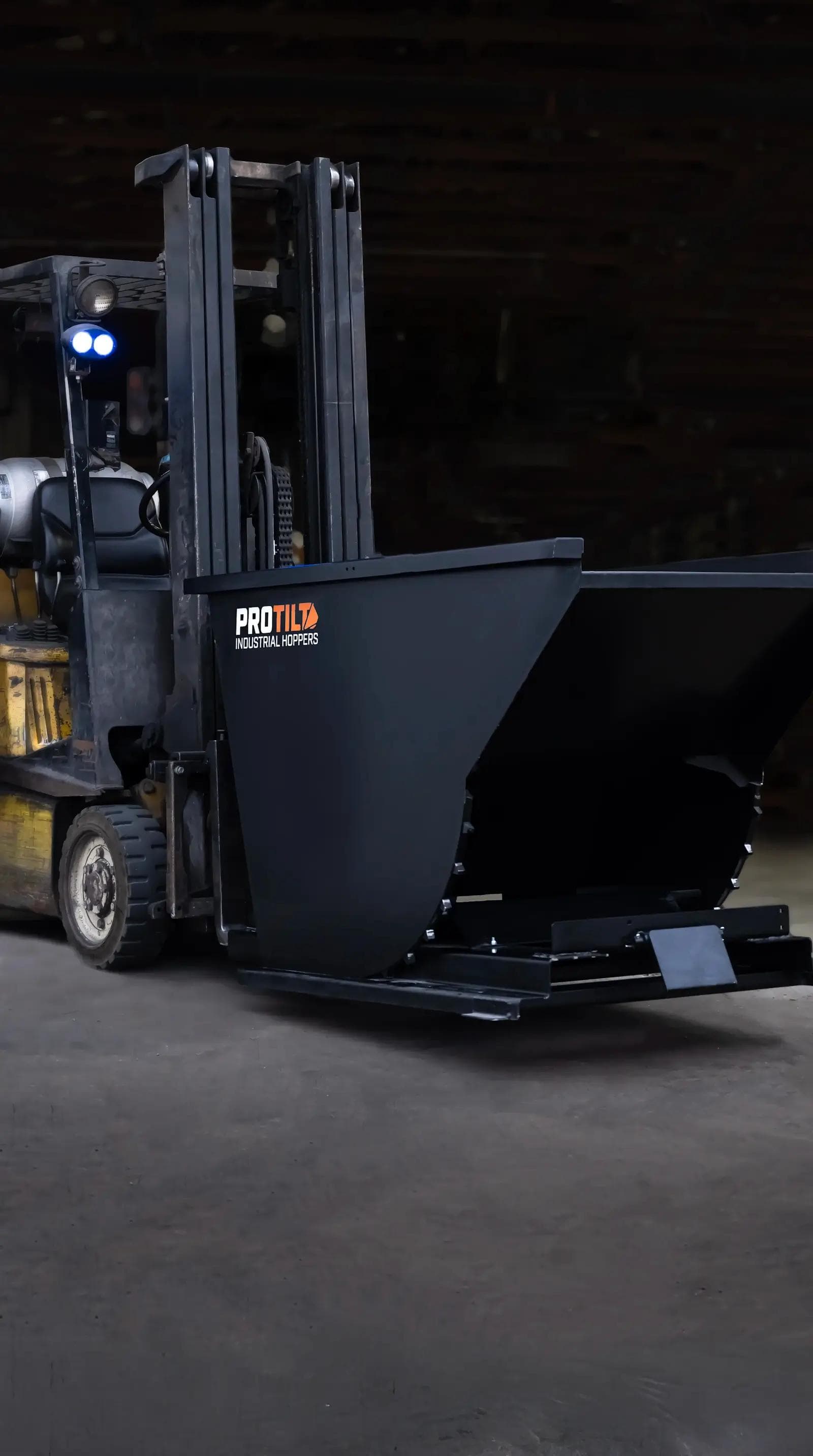

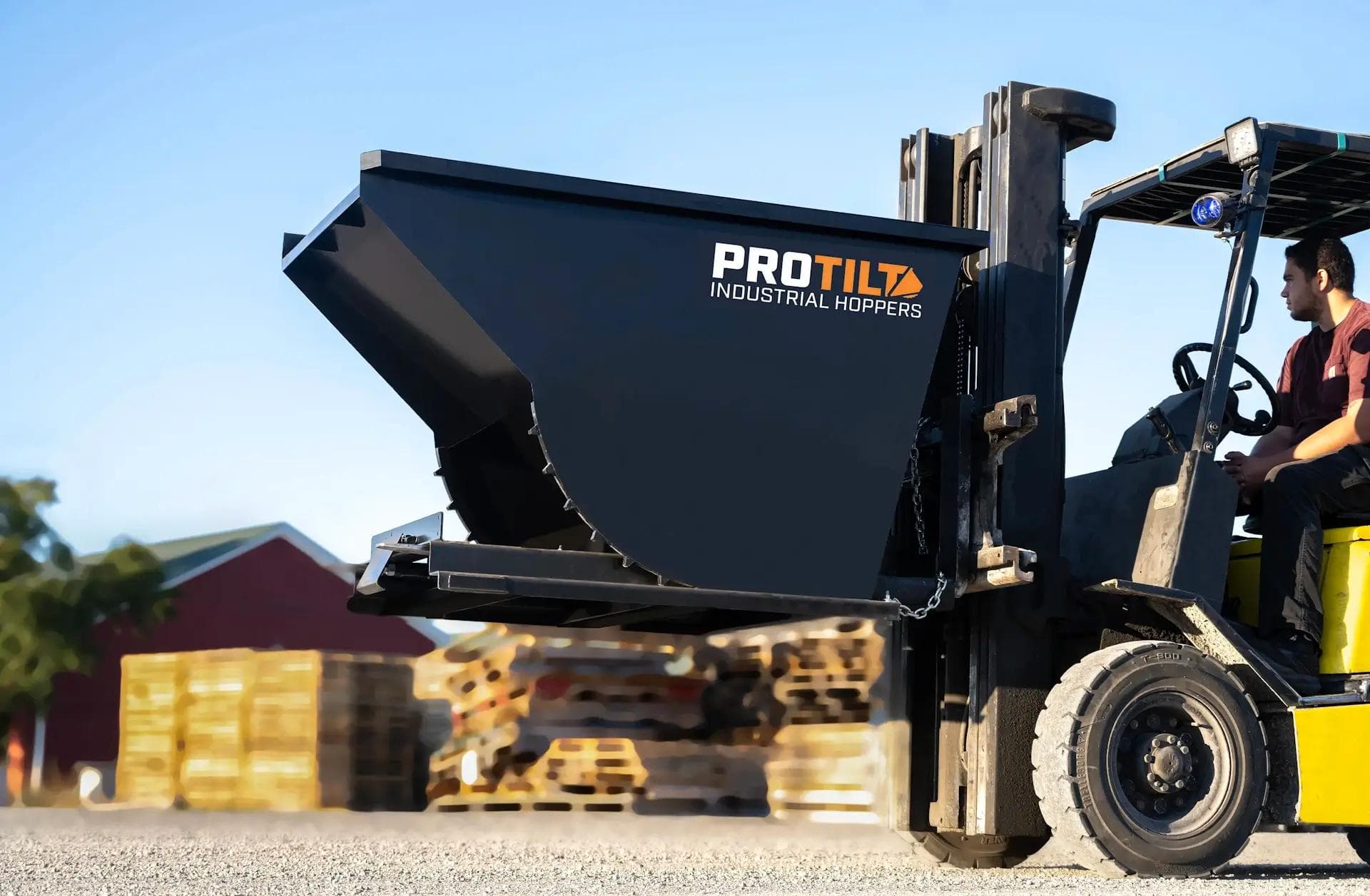

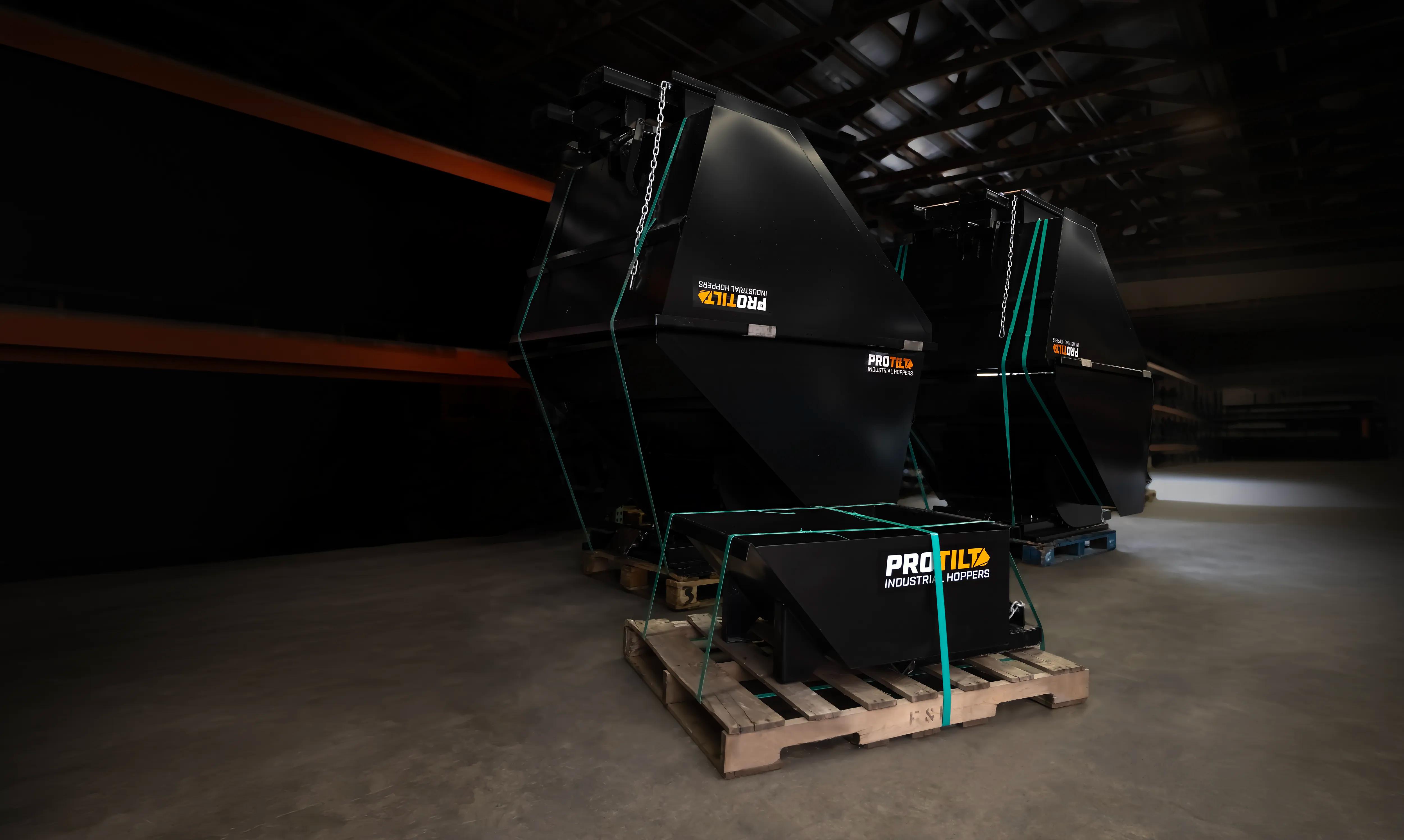

PROTILT Self-Dumping and Bump Release Hoppers feature heavy-duty, powder-coated steel construction with precision-balanced dumping and automatic reset.
The bolt-on Bump-N-Dump system delivers reliable, controlled discharge and easy maintenance for continuous material handling operations.

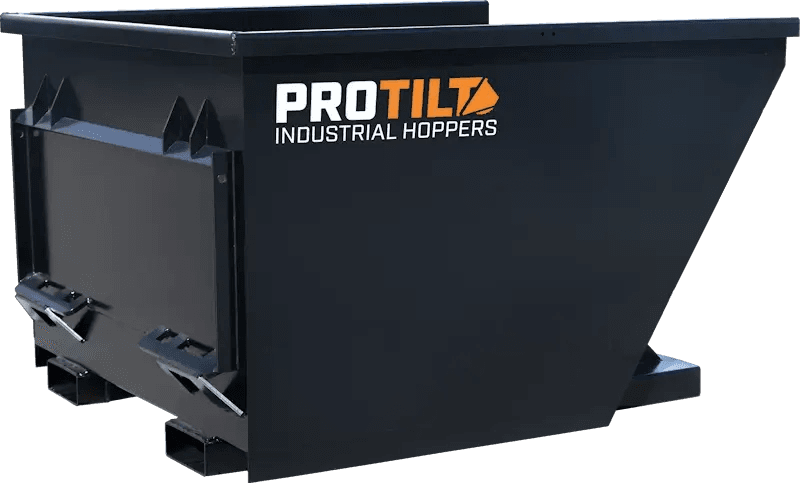

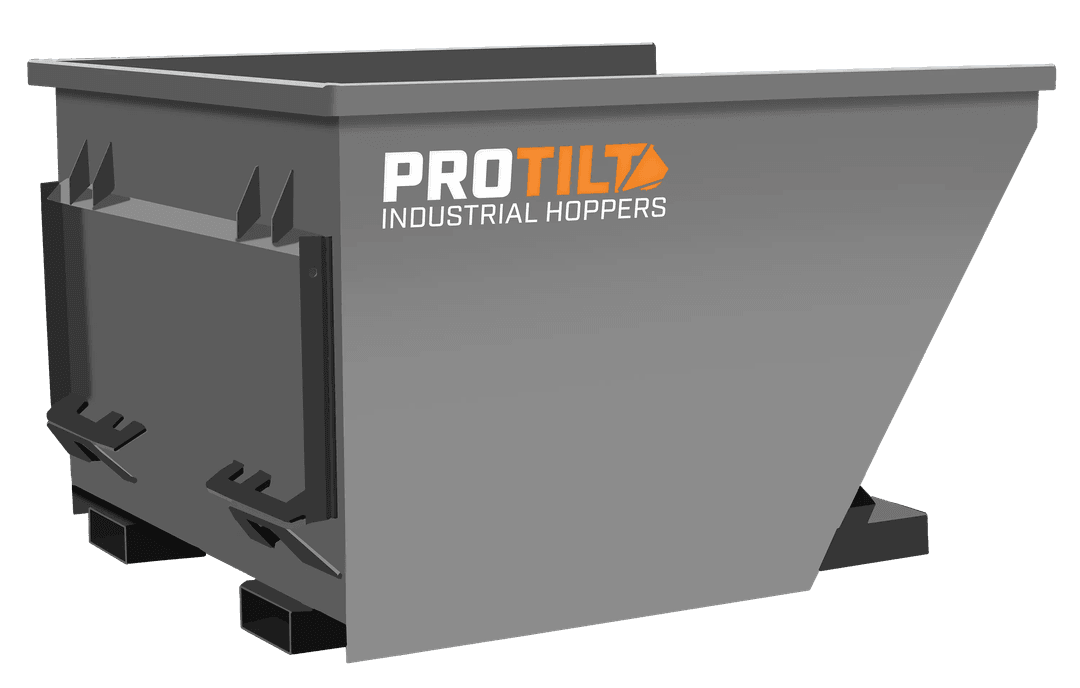

PROTILT Quick Attach Industrial Hoppers feature integrated fork pockets and a universal skid steer quick-attach plate for duel-mode operation.
The reinforced, powder-coated structure ensures stable load handling, efficient discharges, and long service life under continuous-duty applications.

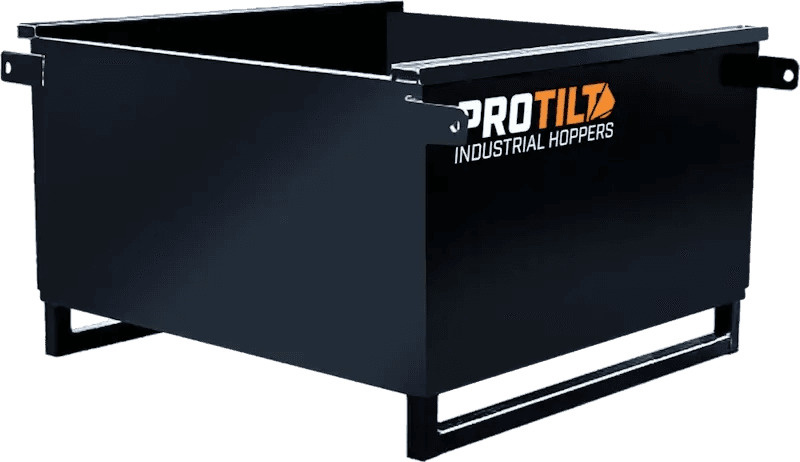

PROTILT Flying Job Box Hoppers feature a structural steel frame with integrated lifting lugs for crane or telehandler use.
The powder-coated finish and heavy-duty weld construction ensure consistent performance in overhead material handling and elevated job-site applications.

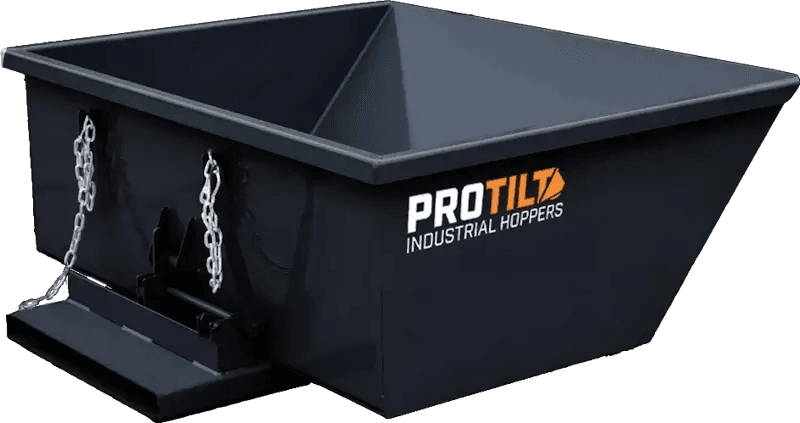

PROTILT Low-Profile Self-Dumping Hoppers utilize a reduced-height, reinforced body for tight-clearance loading under conveyors, presses, and workstations.
The optimized center of gravity and powder- steel construction deliver controlled dumping and extended structural durability.

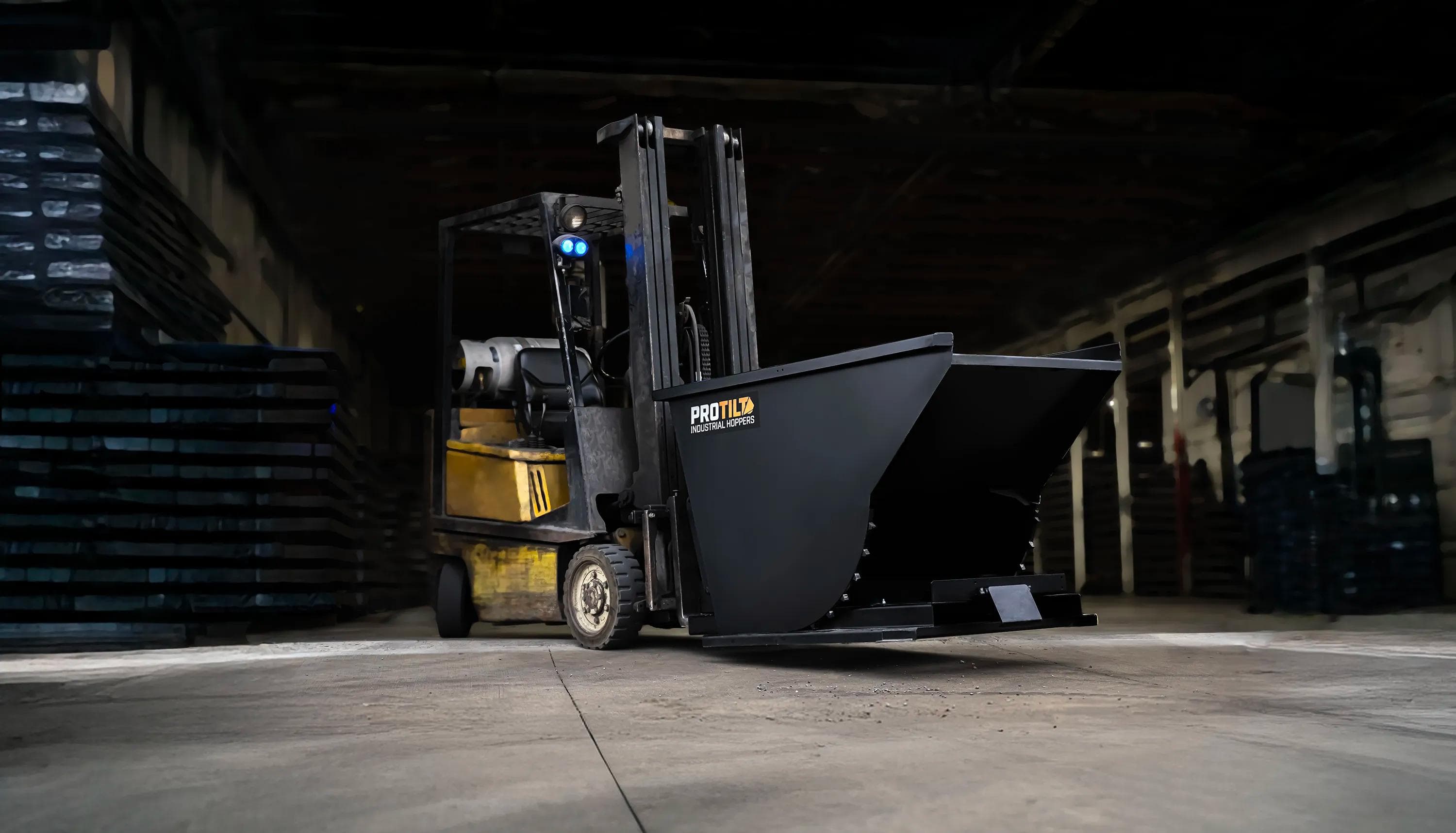

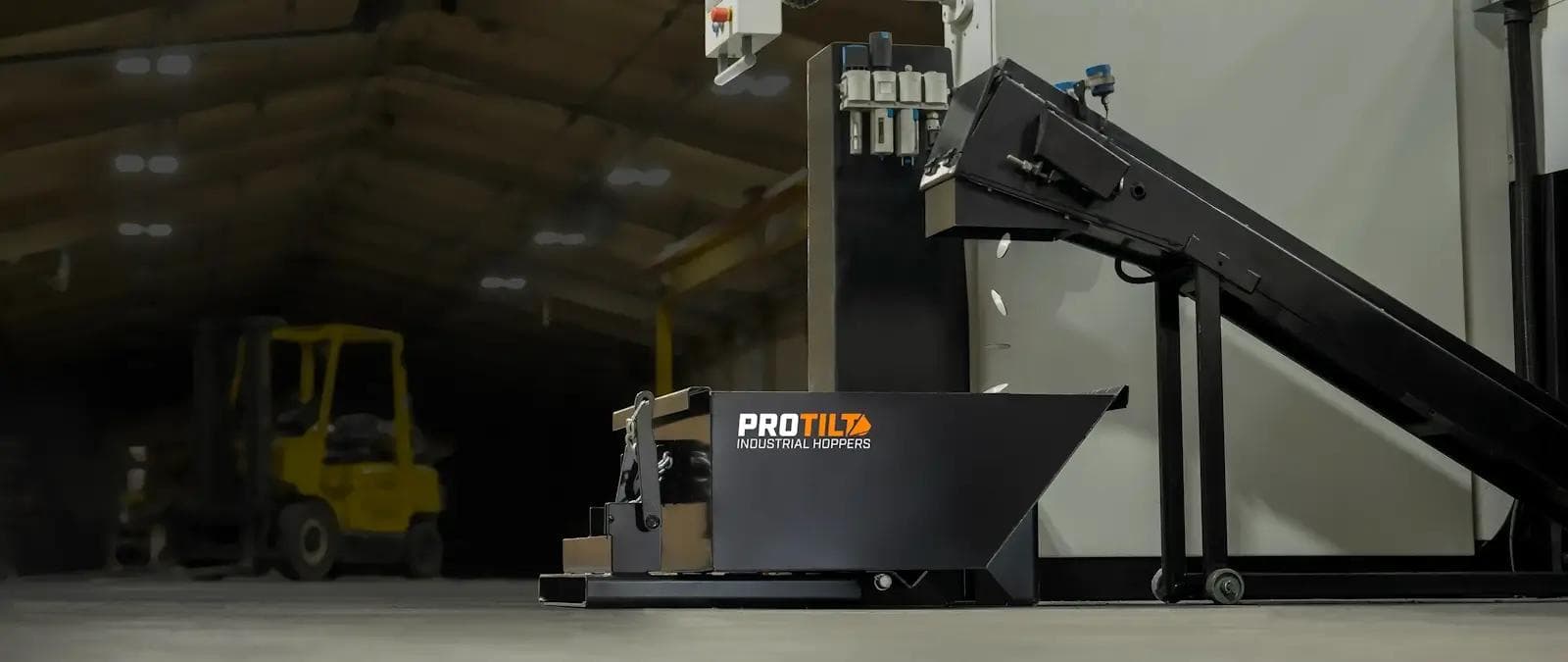

PROTILT Industrial Hoppers are engineered for demanding production environments-fabrication shops, machine plants, foundries, and manufacturing facilities.
Built from heavy-gauge, all-steel construction with reinforced seams and precision-welded joints, every hopper is designed for continuous-duty scrap and material handling.
Available in a wide range of sizes and configurations, PROTILT Hoppers deliver reliable performance across diverse industrial applications, from small part collection to large-volume scrap management.
PROTILT Industrial Hoppers are engineered for demanding production environments-fabrication shops, machine plants, foundries, and manufacturing facilities.
Built from heavy-gauge, all-steel construction with reinforced seams and precision-welded joints, every hopper is designed for continuous-duty scrap and material handling.
Available in a wide range of sizes and configurations, PROTILT Hoppers deliver reliable performance across diverse industrial applications, from small part collection to large-volume scrap management.

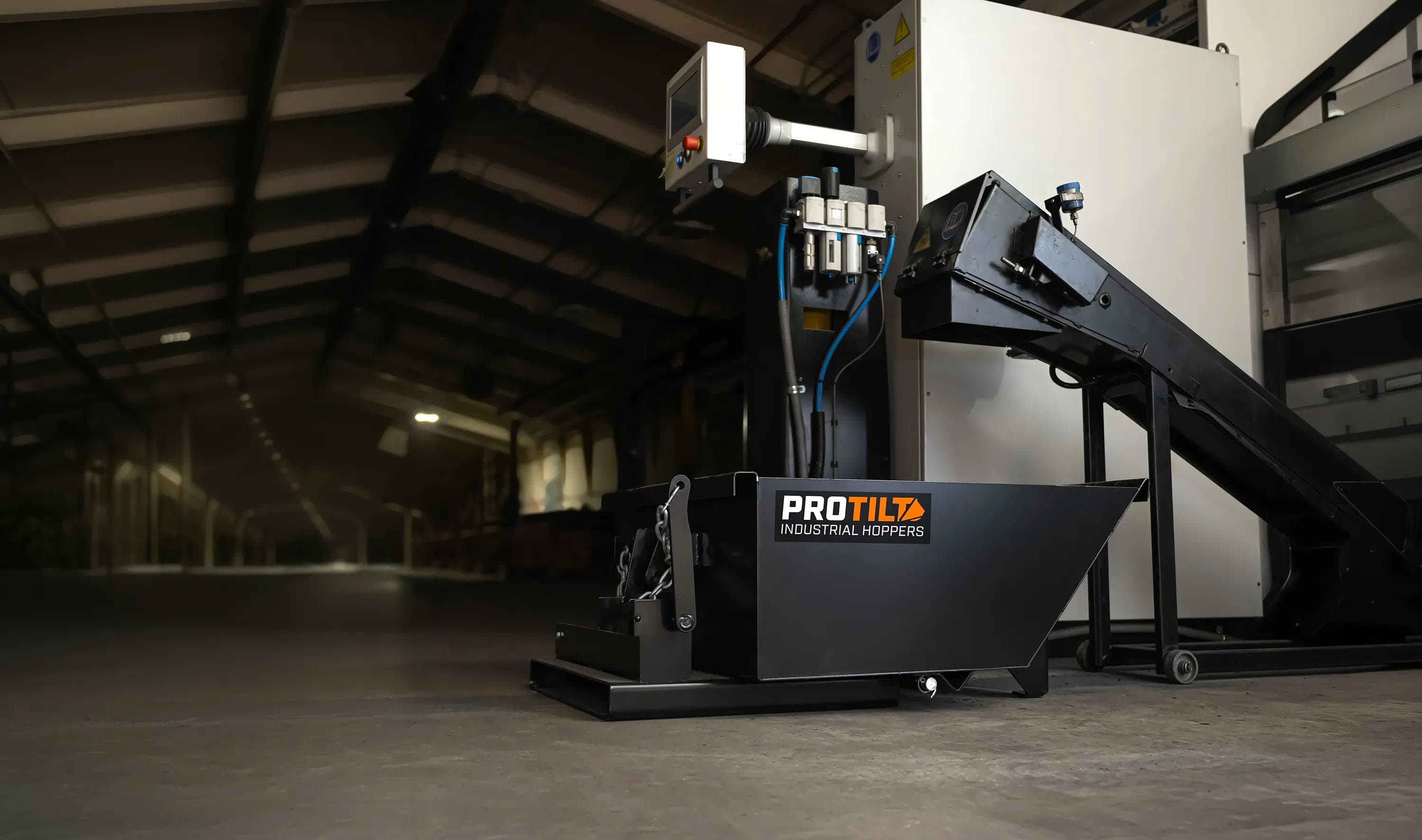

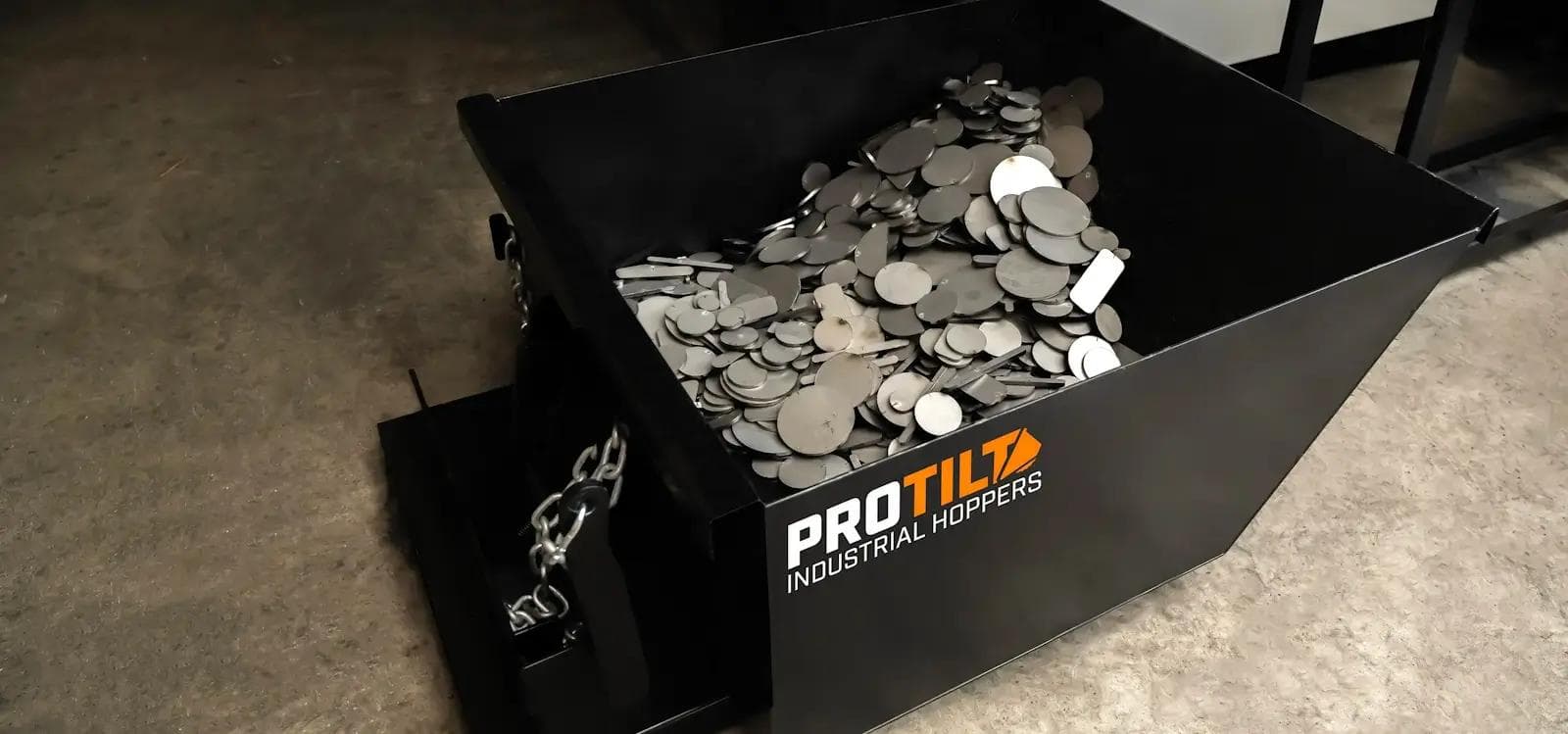

PROTILT Industrial Hoppers are trusted across a wide range of applications — from metal recyclers, machine shops, and fabrication facilities to wood shops, farms, and injection-molding manufacturers
Each model is designed to streamline waste handling, improve productivity, and reduce downtime.
With all-steel, powder-coated construction and sizes from ¼ to 6 yards, PROTILT delivers heavy-duty performance for factories, municipalities, and operations of every scale.
PROTILT Industrial Hoppers are trusted across a wide range of applications — from metal recyclers, machine shops, and fabrication facilities to wood shops, farms, and injection-molding manufacturers
Each model is designed to streamline waste handling, improve productivity, and reduce downtime.
With all-steel, powder-coated construction and sizes from ¼ to 6 yards, PROTILT delivers heavy-duty performance for factories, municipalities, and operations of every scale.

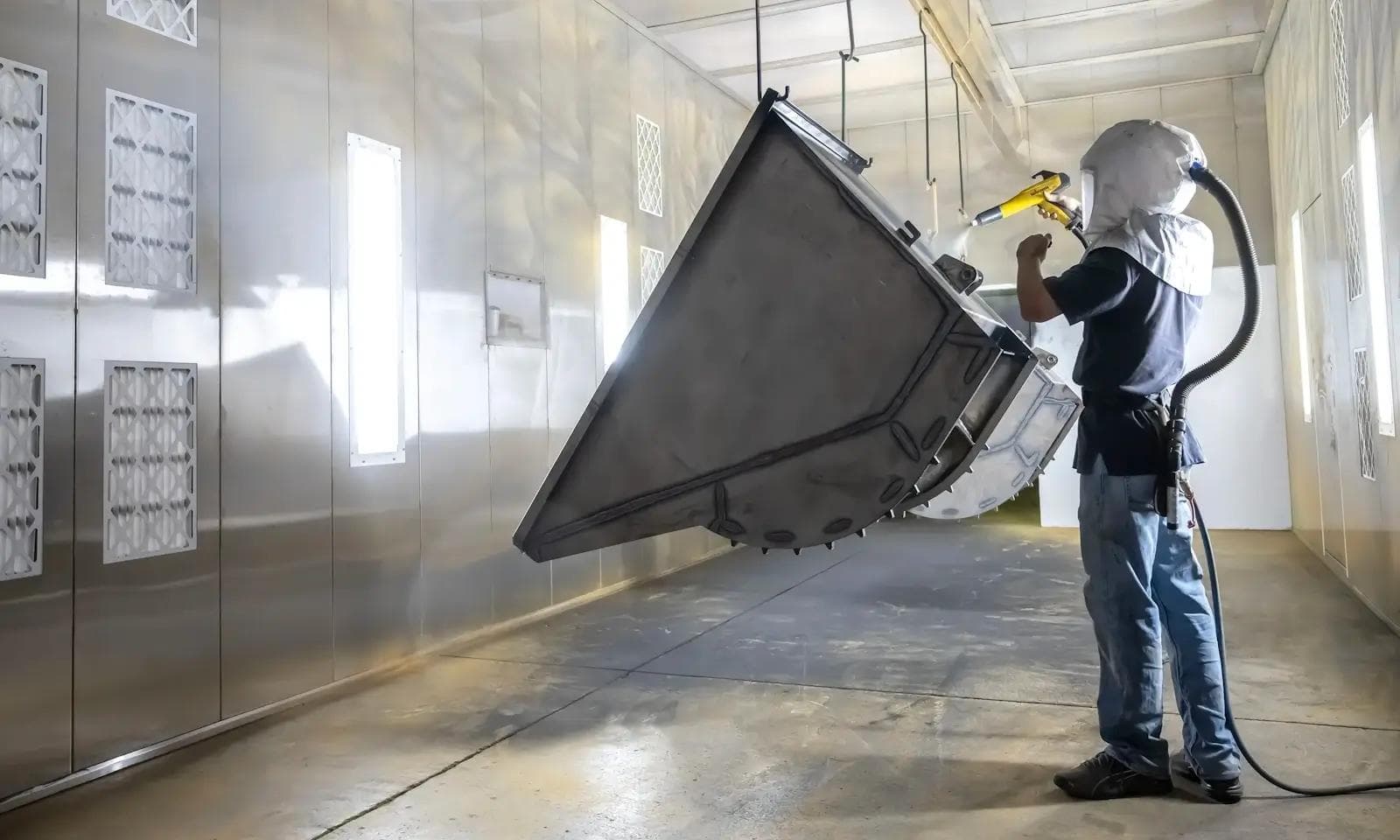

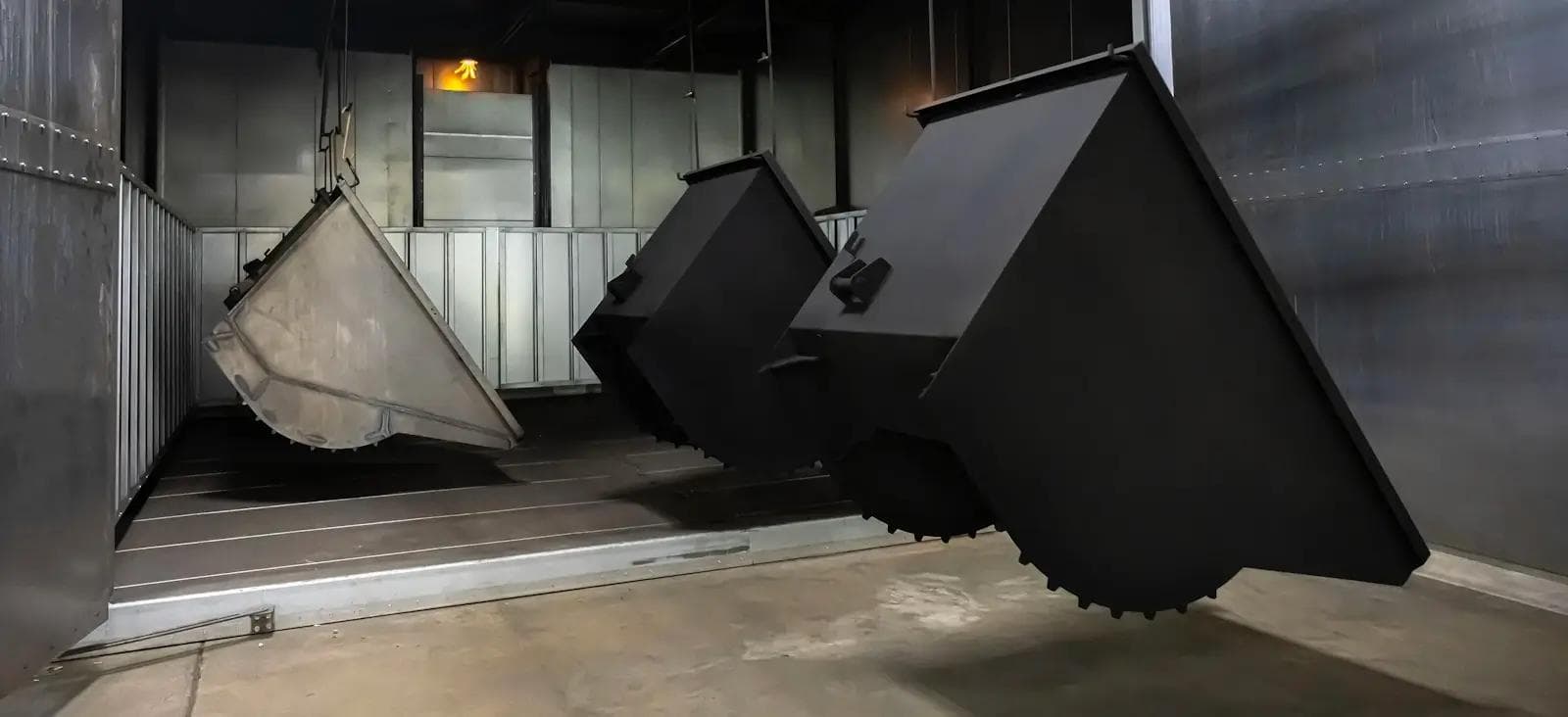

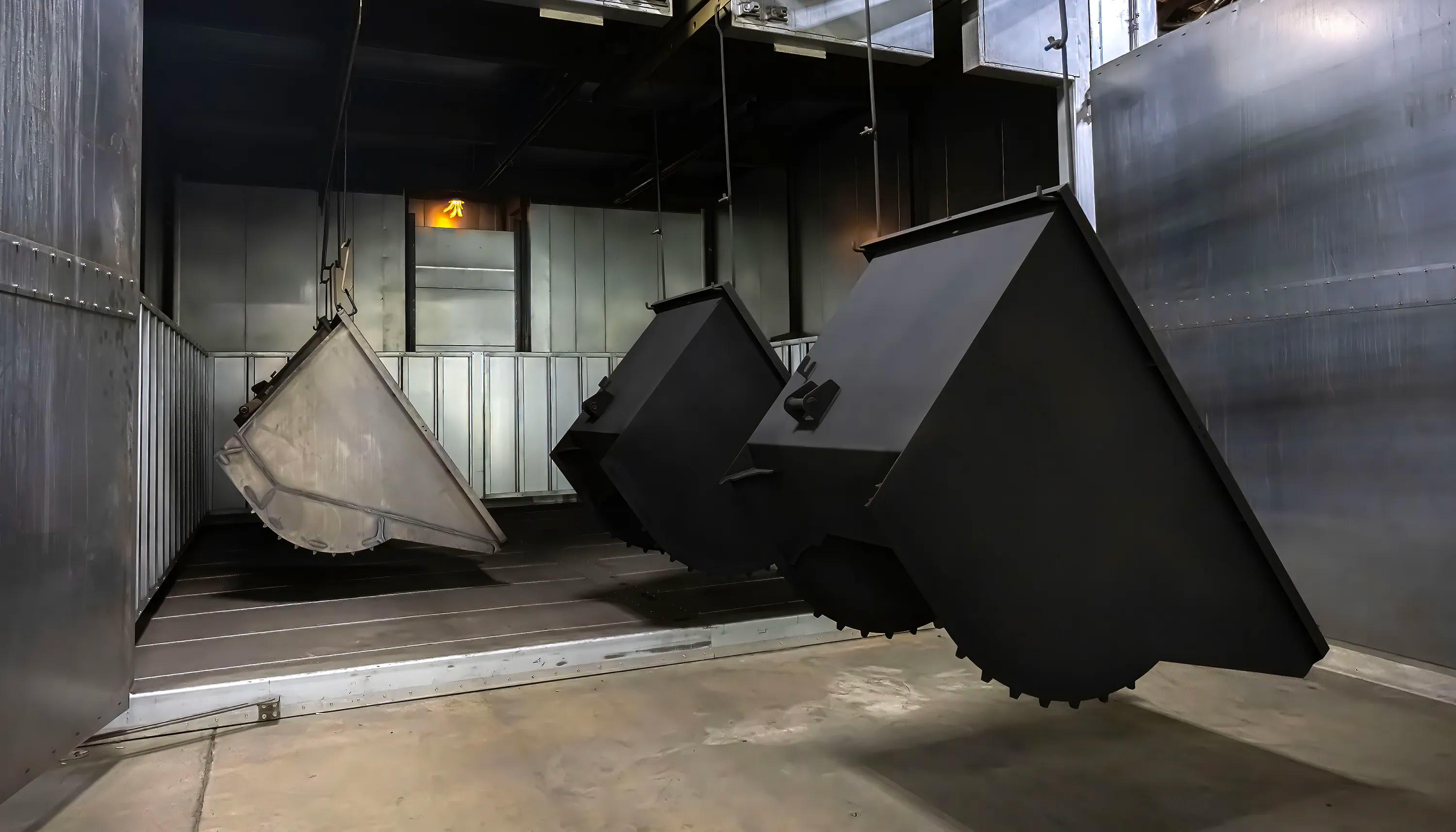

Every PROTILT Industrial Hopper-Self-Dumping, Quick Attach, Flying Job Box, and Low-Profile-is finished with a high-thickness, baked-on powder coat designed for maximum durability and corrosion resistance.
This industrial-grade coating forms a dense, impact-resistant barrier that outperforms conventional wet paint in abrasion, chip, and salt-spray testing.
Powder-coated inside and out, every PROTILT hopper delivers long-term protection, a clean professional appearance, and consistent performance in demanding material-handling environments.
Every PROTILT Industrial Hopper-Self-Dumping, Quick Attach, Flying Job Box, and Low-Profile-is finished with a high-thickness, baked-on powder coat designed for maximum durability and corrosion resistance.
This industrial-grade coating forms a dense, impact-resistant barrier that outperforms conventional wet paint in abrasion, chip, and salt-spray testing.
Powder-coated inside and out, every PROTILT hopper delivers long-term protection, a clean professional appearance, and consistent performance in demanding material-handling environments.

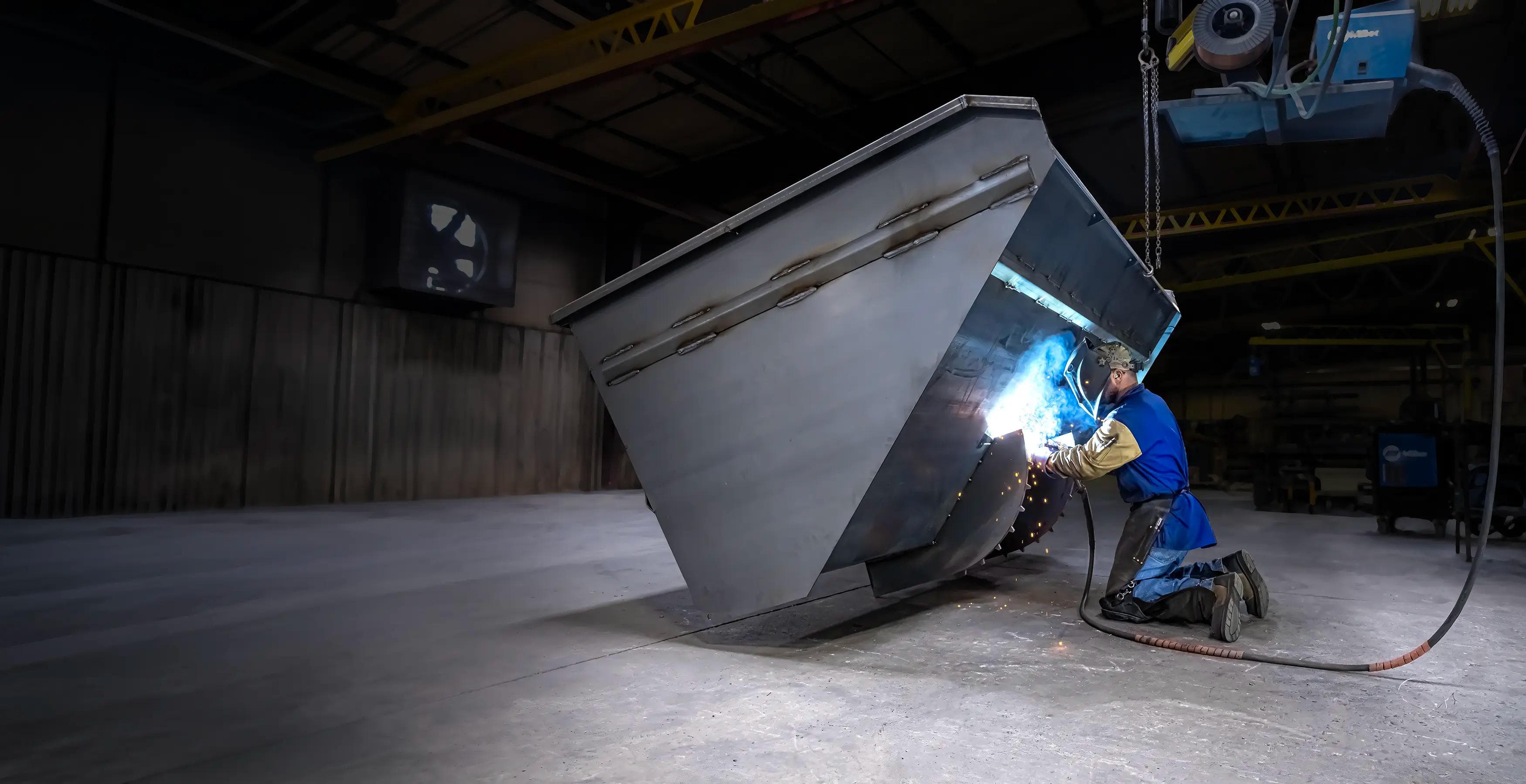

Every operation handles material differently, and PROTILT Industrial Hoppers are built to match. From compact hoppers for small-part collection and tight work areas to large 6-yard models for high-volume scrap handling, PRO TILT offers the size and capacity to fit your workflow.
Each hopper is built from US steel with heavy-duty welded construction and a powder-coated finish for long-term performance in demanding industrial environments. Whether you need to keep individual workstations clean or move large volumes of scrap across your facility, there’s a PROTILT hopper built for the job.
Every operation handles material differently, and PROTILT Industrial Hoppers are built to match. From compact hoppers for small-part collection and tight work areas to large 6-yard models for high-volume scrap handling, PRO TILT offers the size and capacity to fit your workflow.
Each hopper is built from US steel with heavy-duty welded construction and a powder-coated finish for long-term performance in demanding industrial environments. Whether you need to keep individual workstations clean or move large volumes of scrap across your facility, there’s a PROTILT hopper built for the job.

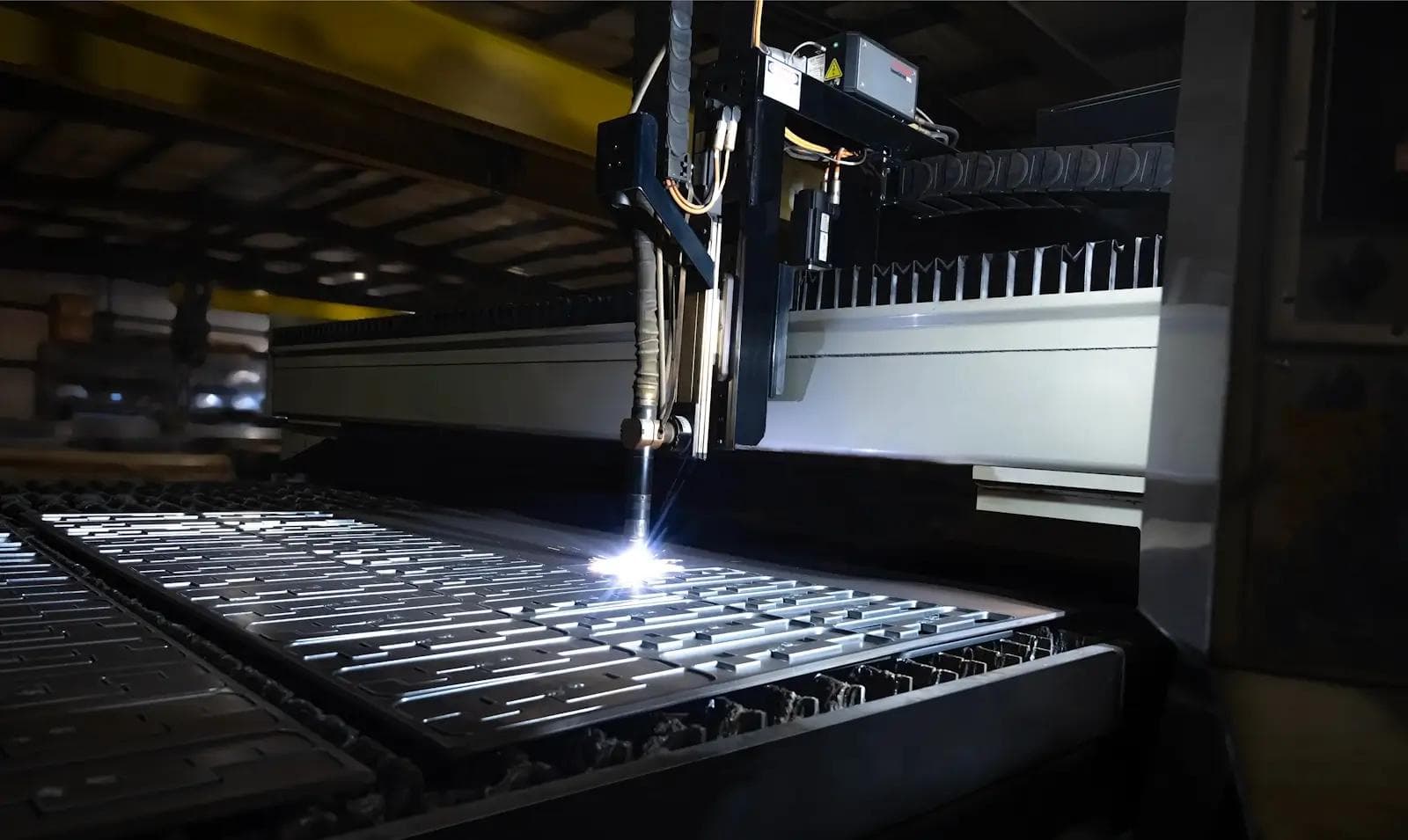

Every PROTILT Industrial Hopper is manufactured by DH Machine, an American machining and fabrication company based in Nappanee, Indiana.

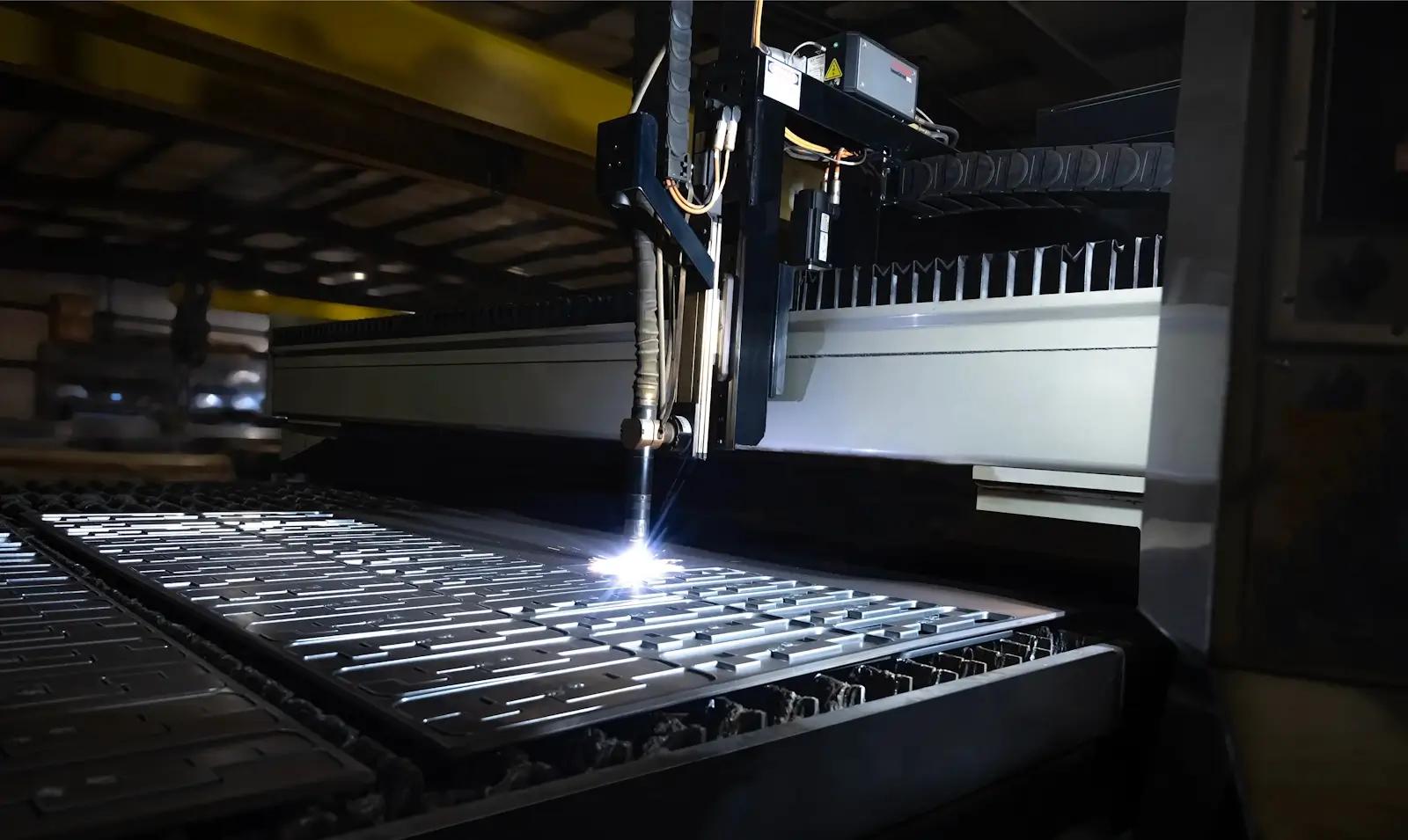

With in-house capabilities including laser cutting, plasma cutting, forming, welding, and powder coating, DH Machine produces heavy-duty steel equipment built to exacting standards.
Our manufacturing expertise ensures every PROTILT hopper delivers consistent quality, structural integrity, and long-term performance in demanding industrial environments.
Every PROTILT Industrial Hopper is manufactured by DH Machine, an American machining and fabrication company based in Nappanee, Indiana.
With in-house capabilities including laser cutting, plasma cutting, forming, welding, and powder coating, DH Machine produces heavy-duty steel equipment built to exacting standards.
Our manufacturing expertise ensures every PROTILT hopper delivers consistent quality, structural integrity, and long-term performance in demanding industrial environments.
Have a question or need a quote on PROTILT Industrial Hoppers? Contact our sales team using the form below or email us directly at sales@protilthoppers.com.
Have a question or need a quote on PROTILT Industrial Hoppers? Contact our sales team using the form below or email us directly at sales@protilthoppers.com.

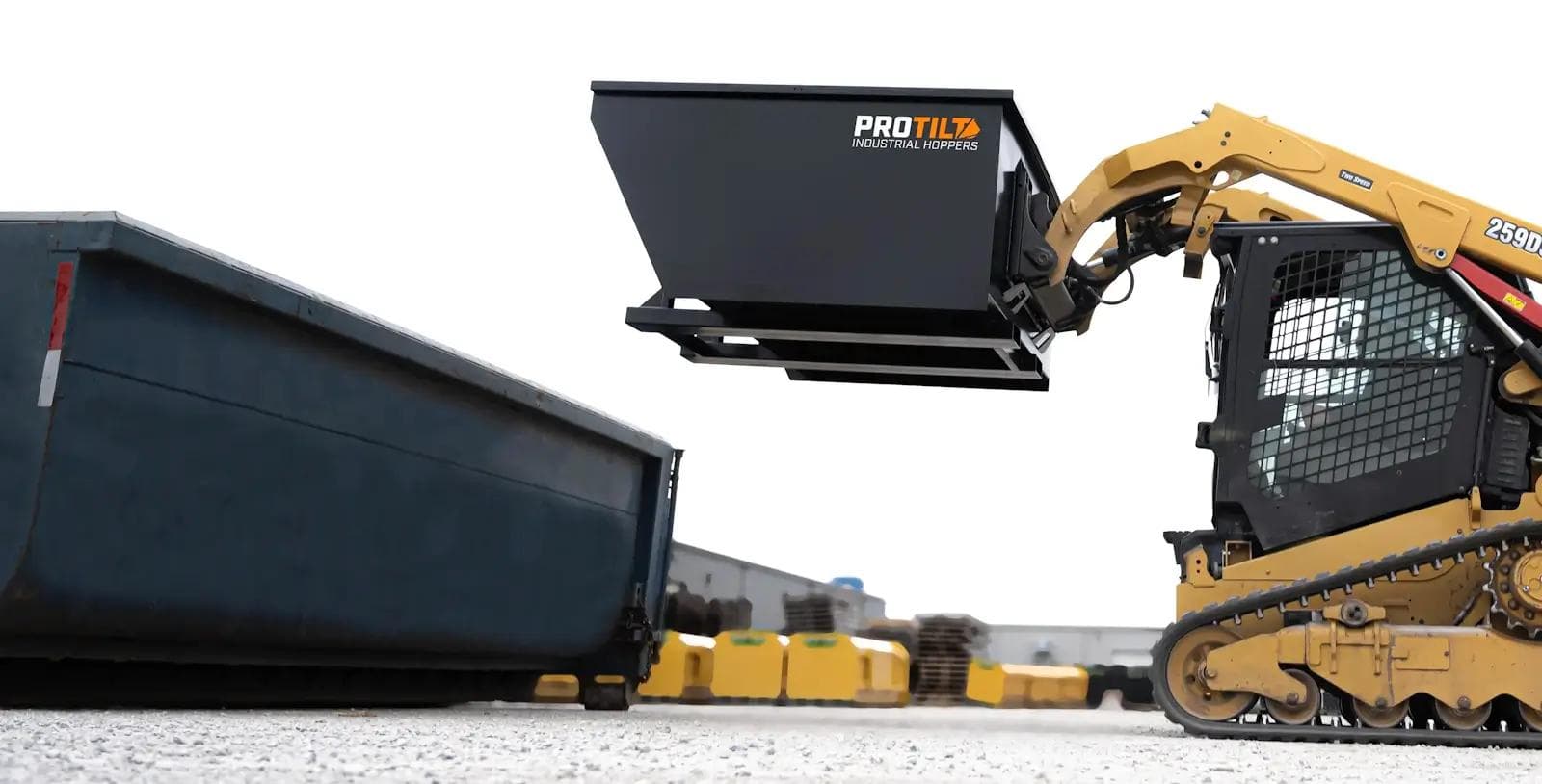

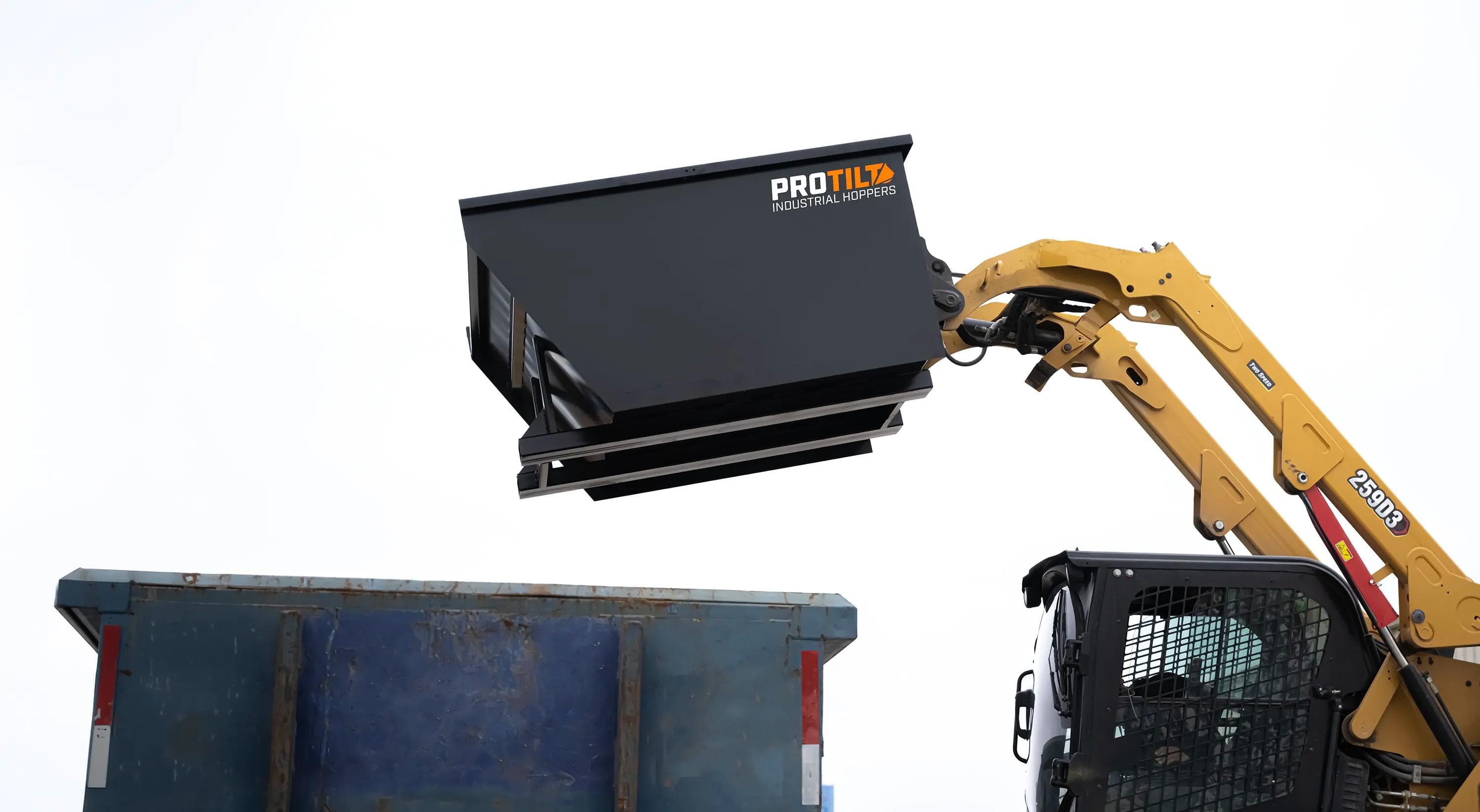

PROTILT industrial Hoppers are built for the equipment that keeps your operation moving. With quick-attach models for skid steers, forklift-ready bases, and crane-lifted job box hoppers, PROTILT delivers heavy-duty, powder-coated performance across every corner of the job site.
From handling scrap to transporting bulk materials, there’s a PROTILT hopper purpose-built for your fleet.
PROTILT industrial Hoppers are built for the equipment that keeps your operation moving. With quick-attach models for skid steers, forklift-ready bases, and crane-lifted job box hoppers, PROTILT delivers heavy-duty, powder-coated performance across every corner of the job site.
From handling scrap to transporting bulk materials, there’s a PROTILT hopper purpose-built for your fleet.
| Product | Color | Volume | Width | Height | Length | Weight Capacity | Approx Weight | Hookup |
|---|---|---|---|---|---|---|---|---|
| 1/4 Yard Self-Dumping Hopper | Black | 0.25 Cubic Yards | 30 | 25 | 44 | 4000 lbs | 390 lbs | Fork Pockets |
| 1/3 Yard Self-Dumping Hopper | Black | 0.33 Cubic Yards | 30 | 29 | 51 | 4000 lbs | 415 lbs | Fork Pockets |
| 1/2 Yard Self-Dumping Hopper | Black | 0.5 Cubic Yards | 30 | 33 | 53 | 4000 lbs | 445 lbs | Fork Pockets |
| 3/4 Yard Self-Dumping Hopper | Black | 0.75 Cubic Yards | 38 | 33 | 64 | 4000 lbs | 515 lbs | Fork Pockets |
| 1 Yard Self-Dumping Hopper | Black | 1 Cubic Yards | 34 | 32 | 65 | 4000 lbs | 555 lbs | Fork Pockets |
| 1 1/2 Yard Self-Dumping Hopper | Black | 1.5 Cubic Yards | 52 | 43 | 67 | 4000 lbs | 690 lbs | Fork Pockets |
| 2 Yard Self-Dumping Hopper | Black | 2 Cubic Yards | 61 | 46 | 70 | 4000 lbs | 785 lbs | Fork Pockets |
| 2 1/2 Yard Self-Dumping Hopper | Black | 2.5 Cubic Yards | 76 | 46 | 70 | 4000 lbs | 850 lbs | Fork Pockets |
| 3 Yard Self-Dumping Hopper | Black | 3 Cubic Yards | 66 | 55 | 75 | 4000 lbs | 915 lbs | Fork Pockets |
| Product | Color | Volume | Width | Height | Length | Weight Capacity | Approx Weight | Hookup |
|---|---|---|---|---|---|---|---|---|

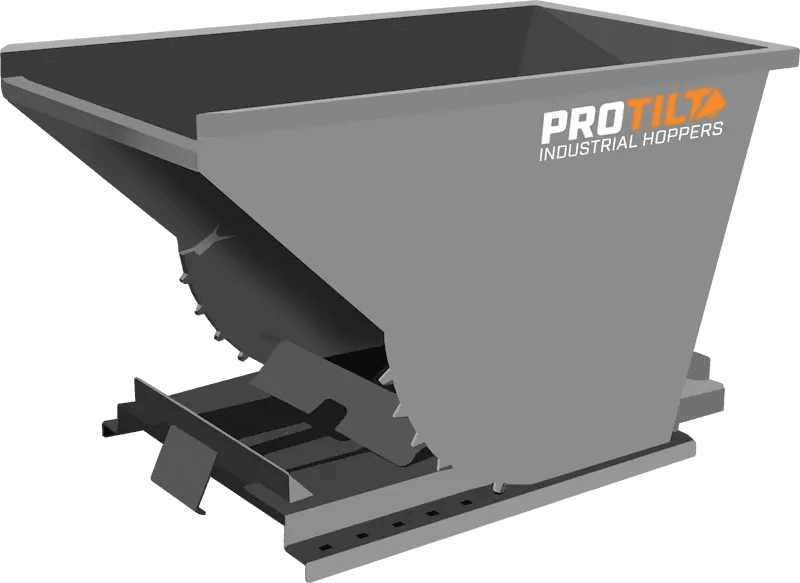

| 1 Yard HD Self-Dumping Hopper | Grey | 1 Cubic Yards | 38 | 41 | 64 | 7000 lbs | 685 lbs | Fork Pockets |
| 2 Yard HD Self-Dumping Hopper | Grey | 2 Cubic Yards | 61 | 46 | 70 | 7000 lbs | 915 lbs | Fork Pockets |
| 3 Yard HD Self-Dumping Hopper | Grey | 3 Cubic Yards | 66 | 55 | 75 | 7000 lbs | 1100 lbs | Fork Pockets |
| 4 Yard HD Self-Dumping Hopper | Grey | 4 Cubic Yards | 87 | 55 | 75 | 7000 lbs | 1330 lbs | Fork Pockets |
| 5 Yard HD Self-Dumping Hopper | Grey | 5 Cubic Yards | 107 | 55 | 75 | 7000 lbs | 1500 lbs | Fork Pockets |
| 6 Yard HD Self-Dumping Hopper | Grey | 6 Cubic Yards | 124 | 57 | 79 | 7000 lbs | 1650 lbs | Fork Pockets |
| Product | Color | Volume | Width | Height | Length | Weight Capacity | Approx Weight | Hookup |
|---|---|---|---|---|---|---|---|---|

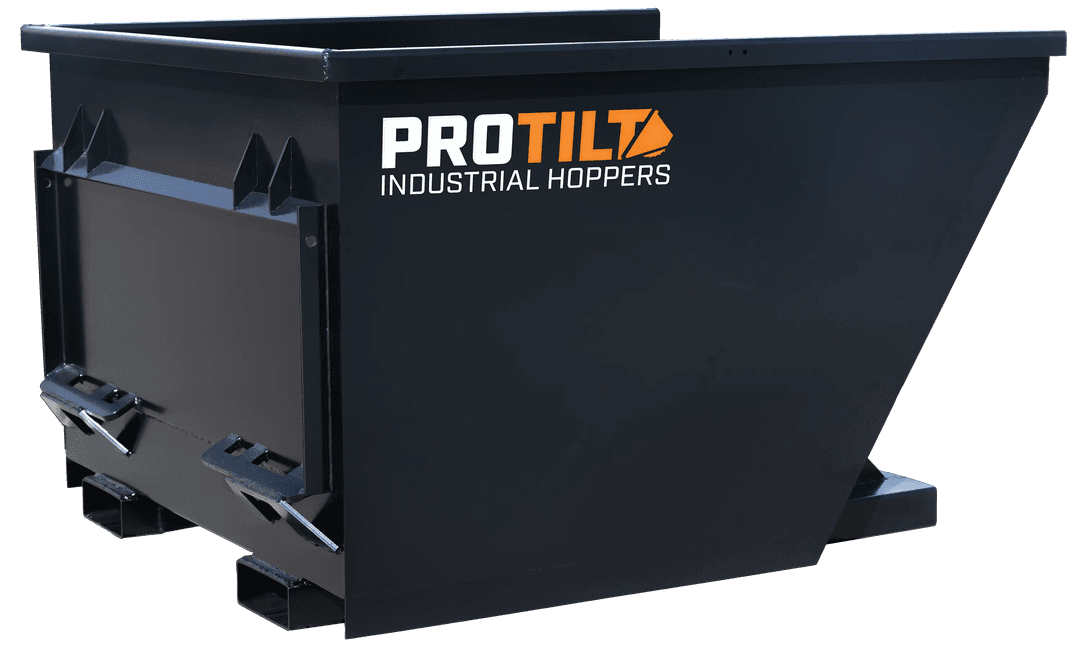

| 1.5 Yard Standard Quick Attach Hopper | Black | 1.5 cubic yards | 52 | 36 | 56 | 4000 lbs | 570 lbs | Standard Quick Attach |
| 2 Yard Quick Attach Hopper | Black | 2 cubic yards | 68 | 36 | 56 | 4000 lbs | 645 lbs | Standard Quick Attach |
| 3 Yard Standard Quick Attach Hopper | Black | 3 cubic yards | 76 | 36 | 70 | 4000 lbs | 780 lbs | Standard Quick Attach |
| Product | Color | Volume | Width | Height | Length | Weight Capacity | Approx Weight | Hookup |
|---|---|---|---|---|---|---|---|---|
| 1.5 Yard Heavy-Duty Quick Attach Hopper | Grey | 1.5 cubic yards | 52 | 36 | 56 | 7000 lbs | 720 lbs | Standard Quick Attach |
| 2 Yard Heavy-Duty Quick Attach Hopper | Grey | 2 cubic yards | 68 | 36 | 56 | 7000 lbs | 840 lbs | Standard Quick Attach |
| 3 Yard Heavy-Duty Quick Attach Hopper | Grey | 3 cubic yards | 76 | 36 | 70 | 7000 lbs | 1020 lbs | Standard Quick Attach |
| Product | Color | Volume | Width | Height | Length | Weight Capacity | Approx Weight | Hookup |
|---|---|---|---|---|---|---|---|---|
| 1/4 Yard Low Profile Self-Dumping Hopper | Black | 0.25 Cubic Yards | 31 | 16.5 | 33 | 4000 lbs | 190 lbs | Fork Pockets |
| 1 Yard Low Profile Self-Dumping Hopper | Black | 1.0 Cubic Yards | 64 | 24 | 49 | 4000 lbs | 360 lbs | Fork Pockets |
| Product | Color | Volume | Width | Height | Length | Weight Capacity | Approx Weight | Hookup |
|---|---|---|---|---|---|---|---|---|
| 1.2 Yard Flying Job Box Hopper | Black | 1.2 Cubic Yards | 48 | 48 | 24.5 | 4000 lbs | 495 lbs | Lifting Lugs | Crane Rigging |
PROTILT Industrial Hoppers are built from heavy-gauge, all-steel construction and finished with a baked-on powder coat for superior durability. Every model is engineered for industrial-duty use — from fabrication shops and foundries to construction and manufacturing operations.
PROTILT hoppers range from ¼ to 6 cubic yards, covering small-part scrap collection through high-volume debris handling. Custom sizing and color options are available for qualified orders.
Yes PROTILT offers multiple models designed for different equipment - Quick Attach hoppers for skid steers, forklift-ready bases for plant operations, and Flying Job Box hoppers with lifting lugs for cranes and telehandlers.
The baked-on powder coat creates a dense, impact-resistant surface that resists chipping, rust, and corrosion better than traditional paint. It extends service life, maintains a clean appearance, and protects both interior and exterior surfaces from harsh conditions.
The bolt-on Bump-N-Dump system automatically releases and resets when the hopper contacts a designated bumper or frame. This allows quick, hands-free dumping while reducing operator effort and downtime.
All PROTILT hoppers are manufactured at DH Machine in Nappanee, IN, with US steel, using in-house fabrication, welding, forming, and powder-coating processes for consistent quality and performance.
PROTILT Industrial Hoppers are built from heavy-gauge, all-steel construction and finished with a baked-on powder coat for superior durability. Every model is engineered for industrial-duty use — from fabrication shops and foundries to construction and manufacturing operations.
PROTILT hoppers range from ¼ to 6 cubic yards, covering small-part scrap collection through high-volume debris handling. Custom sizing and color options are available for qualified orders.
Yes PROTILT offers multiple models designed for different equipment - Quick Attach hoppers for skid steers, forklift-ready bases for plant operations, and Flying Job Box hoppers with lifting lugs for cranes and telehandlers.
The baked-on powder coat creates a dense, impact-resistant surface that resists chipping, rust, and corrosion better than traditional paint. It extends service life, maintains a clean appearance, and protects both interior and exterior surfaces from harsh conditions.
The bolt-on Bump-N-Dump system automatically releases and resets when the hopper contacts a designated bumper or frame. This allows quick, hands-free dumping while reducing operator effort and downtime.
All PROTILT hoppers are manufactured at DH Machine in Nappanee, IN, with US steel, using in-house fabrication, welding, forming, and powder-coating processes for consistent quality and performance.
All PROTILT Industrial Hoppers are warranted to be free from defects in workmanship or materials for a period of twelve (12) months from the original purchase date.
This warranty covers the structural integrity of the hopper body and factory welds under normal use and within the product’s rated capacity.
This warranty does not cover normal wear items, including but not limited to pins, bushings, chains, cables, springs, latches, casters, wheels and other moving or ground-contact components.
This warranty does not cover cosmetic wear, including scratches, dents, powder-coat damage, fading, surface rust or other damage resulting from normal use.
This warranty does not cover damage caused by overloading, misuse, negligence, accidents, improper maintenance or use outside the product’s intended application.
This warranty does not cover damage caused by improper installation, setup, adjustment, loading, lifting or operation.
This warranty does not cover improper modifications, unauthorized repairs or replacement parts not supplied or approved by PROTILT Industrial Hoppers.
This warranty is void if the product or any components have been disassembled or modified without prior authorization from PROTILT Industrial Hoppers.
All PROTILT Industrial Hoppers are warranted to be free from defects in workmanship or materials for a period of twelve (12) months from the original purchase date.
This warranty covers the structural integrity of the hopper body and factory welds under normal use and within the product’s rated capacity.
This warranty does not cover normal wear items, including but not limited to pins, bushings, chains, cables, springs, latches, casters, wheels and other moving or ground-contact components.
This warranty does not cover cosmetic wear, including scratches, dents, powder-coat damage, fading, surface rust or other damage resulting from normal use.
This warranty does not cover damage caused by overloading, misuse, negligence, accidents, improper maintenance or use outside the product’s intended application.
This warranty does not cover damage caused by improper installation, setup, adjustment, loading, lifting or operation.
This warranty does not cover improper modifications, unauthorized repairs or replacement parts not supplied or approved by PROTILT Industrial Hoppers.
This warranty is void if the product or any components have been disassembled or modified without prior authorization from PROTILT Industrial Hoppers.
